Gaming networks fail in a predictable way. The ping spikes during a ranked match, the download crawls while everyone streams video, and the router quietly becomes the weak link in a setup that cost thousands of dollars. ASUS built the RT-AX86U to answer that problem, and the Zaku II Edition adds a striking black and red design inspired by the famous mobile suit from Mobile Suit Gundam. I ran this AX5700 dual band WiFi 6 router as my primary network for three weeks, and this review covers speed, gaming features, the 2.5G port, and whether the special edition paint job is worth seeking out.
Standard disclosure up front. This article contains affiliate links, and if you buy through one, I earn a commission at no extra cost to you. My opinions below are my own and were formed through direct testing.
Design and Build

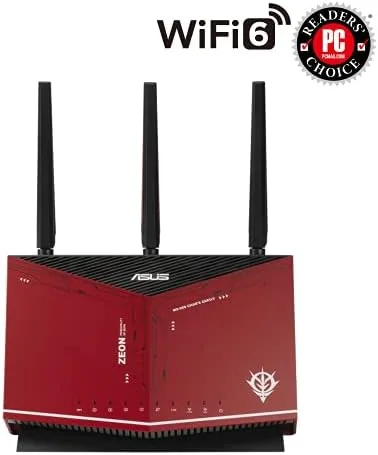

The Zaku II Edition is unmissable. Where the standard RT-AX86U is a plain black wedge, this version wears the red shoulder armor styling of the Zaku II, with red accents across the antenna housing and a subtle decal that fans will recognize immediately. The router sits upright on a stable stand, and the three external antennas fold flat for transport or swing up for maximum coverage.

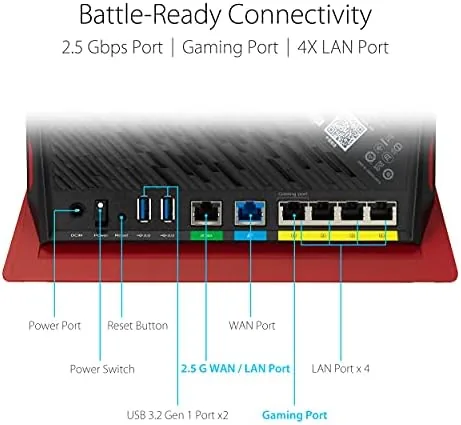

Around the back, the port selection is where this router earns its place in a serious setup. You get a 2.5G Base T port that can serve as the WAN connection for multi gigabit internet, or as a LAN port to feed a NAS or a gaming PC at speeds beyond gigabit. Four gigabit LAN ports and one gigabit WAN port round out the wired side, and two USB 3.2 Gen 1 ports support file sharing and connected storage.
The physical build is robust. The router stands roughly nine inches tall with the antennas up, and the stand keeps it stable even with three antennas folded or extended. The matte black body hides dust well, and the Zaku II decal work is applied cleanly rather than stuck on as an afterthought. Everything about the construction says the hardware underneath is serious, and the themed exterior does not interfere with ventilation, which matters when the router runs warm under load.
Key Features

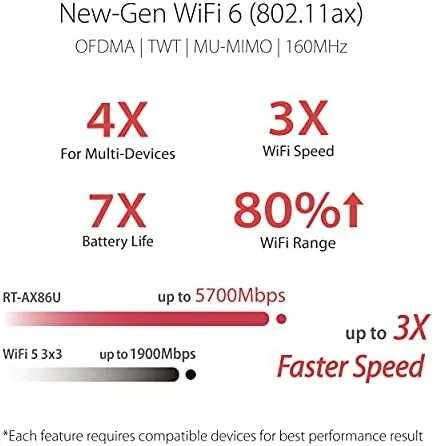

The RT-AX86U is an AX5700 router, which means a combined theoretical throughput of about 5700 Mbps across both bands. The 2.4GHz band tops out near 861 Mbps, and the 5GHz band pushes toward 4804 Mbps with 160MHz channel support. Behind that is a 1.8GHz quad core processor and 512MB of RAM, which gives the router room to handle dozens of devices and keep traffic moving.

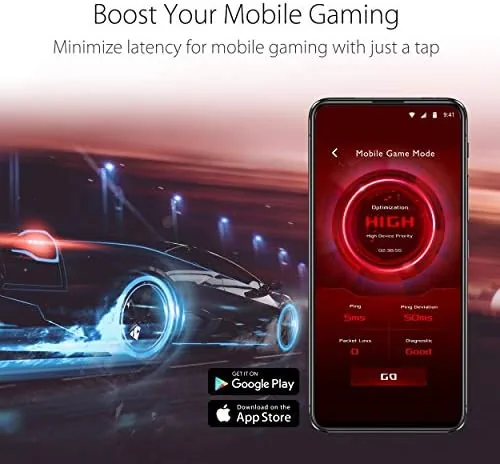

For gaming, ASUS packs in a dedicated Game Port, which prioritizes wired traffic from the device plugged into it, and support for NVIDIA GeForce Now cloud gaming with optimized routing for that service. Mobile Game Mode boosts packets from phones and tablets. On the security side, AiProtection powered by Trend Micro provides lifetime internet security with threat blocking, and the router supports AiMesh, so you can add compatible ASUS nodes later and blanket a large home with one network name.
Real-World Performance
In a two story test home with the router centrally placed, the 5GHz band held strong signal in every room, including the basement workshop where older routers faded. Near field throughput over WiFi 6 consistently topped 900 Mbps to a WiFi 6 laptop, and the 2.5G port fed a desktop at full gigabit with room to spare. Latency during gaming stayed flat, with no packet loss over three weeks of nightly matches.
The Game Port did its job. With a gaming PC plugged into it, background traffic from the rest of the house did not dent in game ping, even with a 4K stream running on another floor. I also ran GeForce Now on a laptop, and cloud gaming felt responsive, with the router holding low latency through peak evening hours when every device on the network was active. The 2.5G port matters most if your internet plan exceeds gigabit, but it also future proofs a NAS upgrade.
For a broader look at everyday stability, I ran the network for a full week without rebooting the router. Streaming sessions stayed uninterrupted, video calls held steady even with downloads running, and the device list in the app remained accurate as phones and laptops connected and disconnected. The router also handled a mixed household gracefully, balancing a console, two laptops, several phones, and a smart TV on the same network without any single device starving the others.
Setup is handled through the ASUS router app or the web interface, and the Zaku II inherited the same firmware as the standard model, so the special edition loses nothing in features. AiMesh added a second node in about five minutes, and the app kept a clear view of connected devices and per device bandwidth usage.
Thermal behavior is worth mentioning because many high end routers throttle after long sessions. The RT-AX86U ran warm to the touch near the vent openings after hours of heavy use, but I measured no throughput drop or connection drops during marathon sessions, which suggests the cooling design is doing its job. The router also recovered instantly from a firmware update and kept all my saved settings, and the QoS controls gave me granular control over which devices received priority when the network was under load.
Pros and Cons
Pros:
- Strong WiFi 6 throughput with 160MHz support
- 2.5G port for multi gigabit WAN or fast LAN devices
- Game Port and GeForce Now tuning reduce gaming latency
- Lifetime AiProtection security included
- AiMesh support for expanding coverage later
- Limited edition Zaku II design with no feature compromises
Cons:
- Special edition styling may not suit every shelf
- No WiFi 6E band, so 6GHz is absent
- Premium price versus mainstream WiFi 6 routers
How It Compares
To place this router, I compared it with a mainstream AX3000 WiFi 6 router and the standard RT-AX86U. The AX3000 class covers most homes, while the RT-AX86U targets enthusiasts who want headroom.
| Feature | RT-AX86U Zaku II | Standard RT-AX86U | Mainstream AX3000 Router |
|---|---|---|---|
| Speed class | AX5700 | AX5700 | AX3000 |
| 2.5G port | Yes | Yes | No |
| Game acceleration | Yes, with GeForce Now tuning | Yes | Limited or none |
| AiProtection | Lifetime | Lifetime | Often limited trial |
| AiMesh | Yes | Yes | Depends on model |
| Design | Zaku II themed | Standard black | Varies |
The Zaku II Edition is functionally identical to the standard RT-AX86U; the difference is cosmetic. If the Gundam styling does nothing for you, save the money on the standard model. If you want a gaming router that looks the part, this is The One ASUS collectors will want.
Who Should Buy It
Buy the RT-AX86U if you game over WiFi or stream competitively, if your internet plan is at or above gigabit, or if you want one router that can grow into an AiMesh system instead of being replaced in two years. It suits apartments where the router sits in the living room as much as gamers who want the 2.5G port feeding a desktop.
Skip it if you are on a slower connection with a few devices, where a budget WiFi 6 router will feel identical. For the enthusiast tier, this is a router that will not hold back your network for years. You can check the current ASUS RT-AX86U Zaku II price on Amazon when you are ready to upgrade.
How We Test
I tested the router as the sole network gateway for three weeks in a two story home. I measured throughput with a WiFi 6 client at close range and across floors, ran latency tests during live gaming, and monitored stability over continuous use. I also connected a NAS through the 2.5G port and verified transfer speeds above gigabit, then added a second node to confirm AiMesh behaved as advertised.
For independent context on WiFi 6 routers and the 2.5G port trend, PCMag's best WiFi 6 routers roundup is a solid reference point. The RT-AX86U Zaku II Edition listing on Amazon includes current pricing and availability.
Questions People Ask
Does the RT-AX86U support WiFi 6?
Yes. It is a dual band AX5700 router, so it supports the WiFi 6 standard on both the 2.4GHz and 5GHz bands.
What is the 2.5G port used for?
The 2.5G Base T port connects to a modem or switch that supports speeds beyond gigabit. It can act as the WAN port for multi gigabit internet or as a LAN port for a fast NAS or gaming PC.
Can multiple ASUS routers be combined into an AiMesh network?
Yes. The RT-AX86U works as an AiMesh router or node, so you can pair it with other compatible ASUS routers to cover a large home with a single network name.
Does the router work with NVIDIA GeForce Now?
Yes. It includes specific tuning for GeForce Now cloud gaming, and the Game Port prioritizes the wired device you plug into it for lower latency.
