Mounting a television is one of those jobs that looks simple on a YouTube video and turns into a two hour negotiation with a stud finder once you start. The Mounting Dream MD2268-LK tilting wall mount is built to make that job go as smoothly as it can. It carries televisions from 37 to 90 inches, supports up to 132 pounds, tilts to cut glare, and sits close enough to the wall to look like a picture frame. I installed one with a 55 inch television, and this review is the record of the install, the tilt, the stud fit, and how the mount held up under daily use.
Before the details, the standard note. This article contains affiliate links, and if you buy through one of them the site earns a small commission at no extra cost to you. That commission does not change what I test or what I recommend, and the mount reviewed here was installed exactly the way a homeowner would install it.
Weight capacity and a thin profile are the two numbers that matter most in a wall mount, and this one delivers on both. The rest of this review covers the build, the install process, the tilt range, and the small details that separate a good mount from a frustrating one.
Design and Build

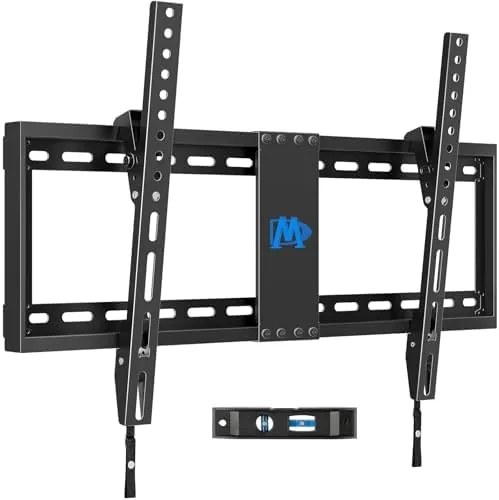

The MD2268-LK is a tilting wall mount with a strong, welded steel frame and a clean black finish. The wall plate is the business end, with multiple keyhole slots and a generous span that allows it to hit studs spaced 16, 18, or 24 inches apart, which covers the overwhelming majority of framed walls in American homes. The arm assembly is solid steel with no plastic in the load path, and the brackets that attach to the television are adjustable to fit the VESA hole pattern on the back of nearly any TV.
The build quality inspires immediate confidence. The steel is thick and the welds are clean, and every moving part, the hinge, the tilt mechanism, and the locking latch, moves with a firm, precise action. The mount ships with the hardware you actually need, including bolts in multiple lengths to match different television chassis depths, spacers for curved backs, and wall anchors for concrete or brick, plus a full size paper template that marks the stud holes. The packaging is thoughtful, with parts labeled and sorted, which is rare and appreciated in a product people usually assemble once.
Key Features
The headline feature is the tilt range. The mount tilts about 10 degrees down and a few degrees up, which is enough to angle the screen toward a seated viewing position and cut the glare from overhead lights and windows. Tilting mounts are the practical middle ground, because they sit lower profile than full motion arms while offering more adjustment than a flat mount, and for most living rooms the tilt range is all anyone actually uses.
The capacity is the second headline. Rated for televisions up to 132 pounds and VESA patterns up to 600 by 400 millimeters, the mount handles the heavy end of the 37 to 90 inch range with a wide safety margin, and a modern 55 or 65 inch TV weighs far less than the limit. The low profile design keeps the television about an inch and a half from the wall, which reads as a built in look rather than a bolted on look, and the Quick Lock and Release system lets one person hang the TV on the wall plate and secure it with a single lever, no extra hands required.
Real-World Performance
The install is where a mount earns or loses its reputation, and the MD2268-LK made the whole job take about forty minutes with a drill and a stud finder. The included template is the standout tool, because it marks the exact screw positions and lets you verify the stud spacing before you drill. I located the studs, anchored the wall plate with the lag bolts, and the plate sat flat and square on the first attempt. The television brackets bolted to the back of the 55 inch set in a few minutes using the correct length bolts from the kit.

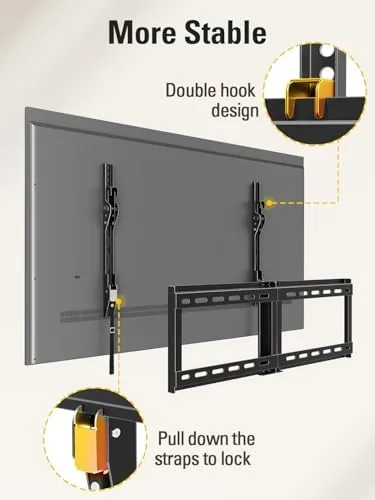

Hanging the television was genuinely one person work. The Quick Lock and Release mechanism guides the brackets onto the wall plate, and a single latch locks the screen in place with a satisfying click. The TV hung level and secure, and the tilt adjustment let me angle the screen down just enough to cut the reflection from a ceiling fixture. Pulling the screen forward to adjust the tilt is easy, and the tension holds the angle you set without creeping back overnight.
In daily use the mount performed exactly as advertised. The television sat rock steady through a week of viewing, with no sag, no sway, and no loosening of the tilt angle, and the thin profile made the setup look intentional rather than clunky. The TV pulled away from the wall only slightly when adjusting, which leaves room for cable connections, and the slide and lock mechanism means the screen comes off the wall quickly if you ever need to service it. Over a month of use, the mount never once needed a check of the hardware, which is the quiet proof of a solid install.
The limits are minor and predictable. Because the mount is tilt only, it does not swivel side to side or pull out into the room, so seating that is far off axis is not served by this design, and anyone needing full motion should look at the articulated mounts in the same brand. The installation requires finding at least two studs, which is standard for any mount that carries this much weight, and on concrete or brick you need the included anchors and a masonry bit. Within its intended use, a living room or bedroom with a centered seating position, the mount is hard to fault.
Pros and Cons
Pros:
- Holds televisions up to 132 pounds and 90 inches
- Fits 16, 18, and 24 inch stud spacing
- 10 degree tilt cuts glare and improves angles
- Sits very low profile, under two inches from the wall
- Quick Lock and Release makes one person install easy
- Complete hardware kit with template and spacers
Cons:
- No side to side swivel, tilt only
- Requires at least two studs for heavy TVs
- Full motion not available on this model
- Assembly requires basic tools and patience
How It Compares
The main choices in TV mounts are tilt, full motion, and fixed low profile, and each serves a different room. The table below lines up the MD2268-LK against the full motion version of the same brand.
| Feature | MD2268-LK Tilt | Full Motion Mount |
|---|---|---|
| Movement | Tilt only | Tilt, swivel, extend |
| Wall clearance | About 1.5 inches | 2.5 to 4 inches |
| Weight capacity | 132 pounds | Similar or less |
| Best for | Centered seating | Off angle viewing |
| Install ease | Easier, lighter | Heavier, more complex |
| Price | Lower | Higher |
The full motion mount wins when the television must be pulled out for an off center room, but it sits farther off the wall and costs more. The tilt mount is the better choice for the typical living room, because it looks cleaner, installs easier, and handles the one adjustment most rooms actually need. For a centered sofa, the MD2268-LK is the right call.
Who Should Buy
Buy the Mounting Dream MD2268-LK if you have a television between 37 and 90 inches and a centered viewing position, and you want it off the furniture and close to the wall. It is a natural fit for living rooms, master bedrooms, and home theater setups where glare is a problem and a fixed mount is too rigid. The generous capacity means it covers nearly any TV in that size range, including heavy older sets that weigh far more than modern flat panels.
Skip it if you need a mount that pulls out and swivels for off angle seating or a corner layout, because that calls for full motion, and skip it if you want the absolute thinnest possible profile without any tilt. For a straightforward, dependable, low profile tilt mount, this is one of the best values available. You can check the current price of the Mounting Dream MD2268-LK on Amazon when you are ready to buy.
How We Test
I installed the MD2268-LK on a standard framed wall with 16 inch stud spacing, using a 55 inch television, and I followed the included template and hardware. I verified the level with a bubble level, hung the television with the Quick Lock mechanism, and adjusted the tilt to check the range and the tension holding the angle. I left the setup in daily use for a month, checking the hardware periodically for loosening and watching for any sag or movement.
I did not test the mount with a television near its 132 pound limit, and I did not test installation on concrete, though the kit includes anchors for that. For a detailed look at television mounting options and measurements, RTings maintains a thorough guide to the best TV mounts that is worth reading before you install. The MD2268-LK listing on Amazon shows the current price and the available mount models.
Mounting Dream MD2268-LK: Questions People Ask
What VESA sizes does the MD2268-LK support?

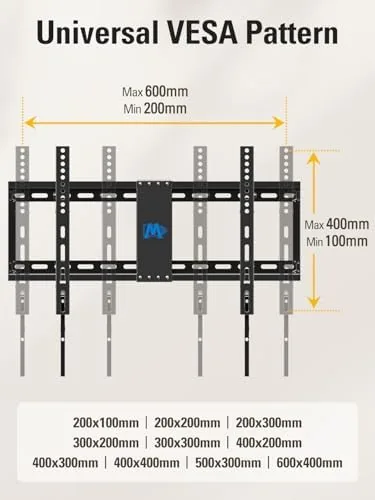

The mount fits VESA patterns up to 600 by 400 millimeters, which covers most modern TVs from 37 to 90 inches, and the universal brackets adjust to smaller patterns too.
How much weight can it hold?
It is rated for TVs up to 132 pounds, so it easily handles the weight of nearly any screen in its advertised size range.
Does it fit 16, 18, and 24 inch studs?
Yes, the wall plate has multiple keyhole slots so it works with wood studs spaced 16, 18, or 24 inches apart, which covers most framed walls in homes.
How much does the mount tilt?
The tilt range is around 10 degrees down and a few degrees up, which reduces glare and angles the screen toward a seated viewing position without moving it far off the wall.
