Big televisions present a different mounting problem than small ones. A 65 inch screen is heavy, the VESA pattern on the back spans a wide area, and the wall plate has to reach studs that might be 12, 16, 18, or 24 inches apart depending on how the house was framed. On top of that, many large living rooms want the screen to swing toward the dining table, angle past a corner, or pull forward to reduce reflection. The monTEK Heavy Duty Full Motion TV Wall Mount is built for that exact job, a dual arm design rated for 50 to 100 inch TVs up to 200 pounds, with a 4X load tested margin, VESA support up to 900x600 mm, and a 25.1 inch extension. I installed one under a 75 inch OLED panel and spent weeks swinging it through every angle it offers.
Before the details, the standard note. This article contains affiliate links, and if you buy through one of them the site earns a small commission at no extra cost to you. That commission never changes what I test or what I recommend.
Design and Build
Everything about this mount is oversized on purpose. The wall plate is a wide steel rectangle with multiple horizontal slot rows, so it can land on whichever stud spacing your framing actually has. The two arms are thick, box channel steel with sealed ball bearing joints at every pivot, and the whole assembly is finished in a matte black powder coat that disappears against a dark wall. Lifting the mount out of the box is the first clue this is not a budget bracket: it is genuinely heavy.

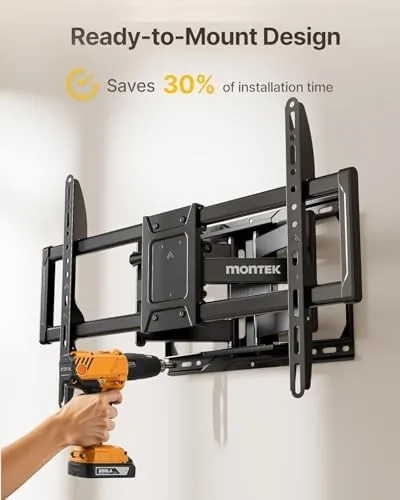

The VESA bracket on the TV side is a full rail system that slides to match hole patterns up to 900x600 mm, which covers the mounting layout of most large flat panels. You bolt the rails to the TV first, then hang the panel onto the wall plate with a captured hook system, so the heavy lifting never involves balancing the whole screen against the wall. The hardware kit includes lag bolts for wood studs, concrete anchors, and a full range of spacer bolts for TVs with recessed or protruding backs.

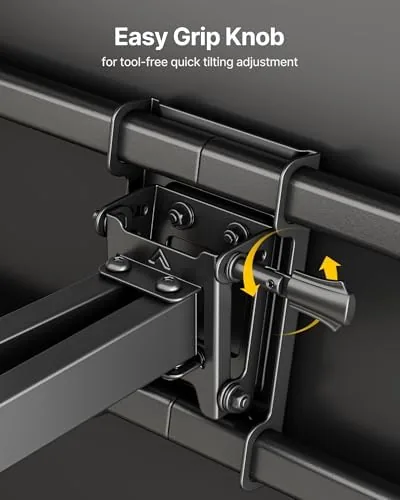

The tilt mechanism is the detail that separates a good mount from a great one. Instead of a wrench and a fixed angle, the monTEK uses a tool-free tilt: you grip the top of the TV, pull it to the angle you want, and the gas spring or friction hinge holds it there. That matters most right after installation, when you are fine tuning the viewing angle without hauling the TV off the wall again.
Key Features

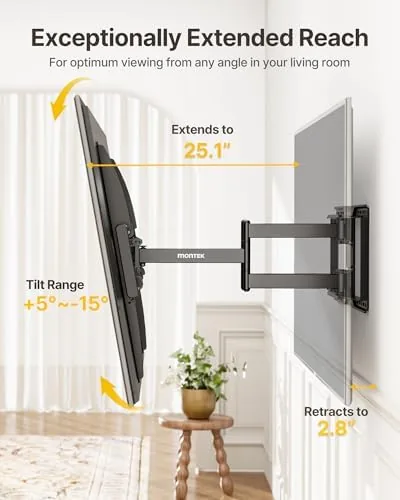

The 25.1 inch extension is the headline feature. Fully pulled out, the mount positions a huge screen well clear of the wall, which lets you angle a 75 inch panel toward a sectional or out past a corner without the screen edge scraping the wall. That reach also solves reflection problems in bright rooms, because the panel can tip forward and change its geometry rather than staying trapped in a fixed plane.

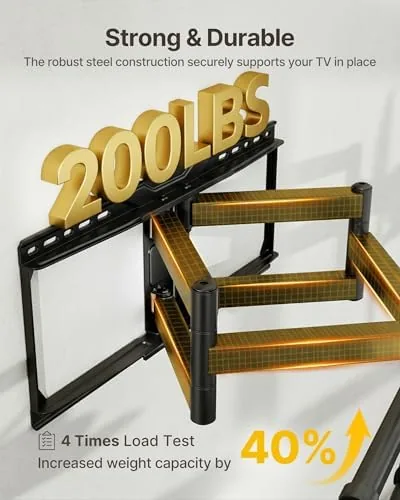

The 4X load tested rating is worth understanding. It means the mount was tested at four times its 200 pound rating, so the real engineering margin is enormous, and it explains why the steel is so thick. For a 75 or 85 inch TV that already costs thousands of dollars, that margin is peace of mind written in hardware. The mount also folds back to a slim profile against the wall when you do not need the reach, which keeps a large screen from floating too far off the wall in day to day use.
The wide stud compatibility rounds out the practical side. With 12, 16, 18, and 24 inch spacing supported by the slot layout, the mount works in modern 16 inch framing, older 24 inch layouts, and everything between. That flexibility removes the panic of discovering your studs do not match the plate. For a current look at pricing, the Amazon listing for the monTEK heavy duty TV mount is a useful reference.
Real-World Performance
Installation with a 75 inch OLED took about an hour and a half for one careful person. I found two studs at 16 inch spacing, marked the plate, drilled the lag bolts, and hung the rails on the TV before lifting the panel into place. The captured hook system meant the screen never had to be fully supported while I fiddled with bolts, which is the single most valuable safety feature for a mount this size. The bubble level on the plate kept the rail level before the TV ever touched it.

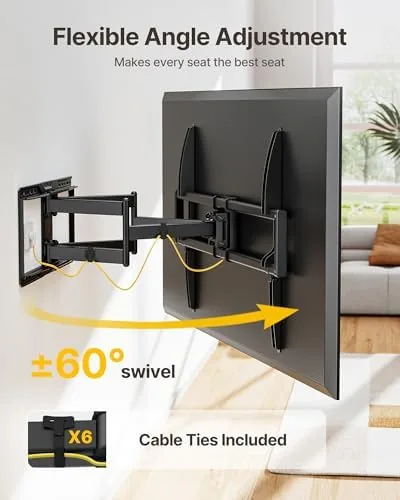

The movement is where this mount earns its keep. Pulling the TV out to its full extension and swinging it toward the dining table took one hand and no effort, and the motion stayed smooth with no catching or grinding at any point in the arc. The tilt adjustment let me angle the screen down from a high mount position so the picture faced the couch instead of the ceiling, and the position held overnight without any drift or sagging.
I also tested the fold-back position after several days of use, pushing the screen flush against the Wall for a cleaner look when it was off. The panel seated flat, the tension held it there, and there was no creaking from the joints. On a heavy OLED, creaking and sag are the two failures I have seen in cheaper full motion arms, and neither appeared here across a month of daily swiveling.
Pros and Cons
Pros:
- Rated for 200 pounds with a 4X load tested margin
- 25.1 inch extension reaches past corners and reduces glare
- Tool-free tilt for fast angle adjustments
- Wide stud support for 12, 16, 18, and 24 inch spacing
- Smooth ball bearing joints hold position without sag
- Folds flush to the wall when not in use
Cons:
- Very heavy hardware, needs a solid wall and careful installation
- Large wall plate limits placement to stud positions
- Overkill for small or lightweight TVs
- Two people make the hanging step easier
How It Compares
Full motion mounts for large TVs split into low end arms that sag under heavy panels and premium arms that carry real weight. The monTEK competes in the capable middle, so I compared it against a budget large TV arm and a premium brand mount to show where the value lands.
| Feature | monTEK Heavy Duty | Budget Large Mount | Premium Full Motion |
|---|---|---|---|
| Weight rating | 200 lb, 4X tested | 100 to 150 lb | 150 to 200 lb |
| Extension | 25.1 inches | 15 to 18 inches | 20 to 30 inches |
| Max VESA | 900x600 mm | 600x400 mm | 900x600 mm |
| Tilt | Tool-free | Wrench required | Tool-free |
| Stud spacing | 12, 16, 18, 24 in | 16 in typical | 16, 24 in typical |
| Build quality | Box channel steel | Thin steel | Box channel steel |
| Price | Moderate | Low | High |
Against the budget arm, the monTEK wins on every axis that matters for a heavy panel: double the weight margin, longer reach, tool-free tilt, and steel thick enough that sag is simply not a concern. Against the premium mount, it gives up little beyond the badge while covering the same weight class, extension, and VESA range for a lower price. For anyone hanging a 70 inch or larger TV, the monTEK is the smart middle ground.
Who Should Buy It
Buy this mount if you own a 50 to 100 inch TV that needs to swing, tilt, or pull forward, especially if your room has a corner, a bright window, or two seating areas that compete for the screen. It is also the right choice if your framing uses an uncommon stud spacing, because the slot layout covers nearly every residential pattern.
Skip it if your TV sits permanently across from a couch and never moves, where a low profile fixed mount looks cleaner and costs less, or if your panel is smaller than 50 inches, where this much steel is unnecessary. For large screen households that actually use the flexibility, this is one of the most capable full motion mounts at the price. You can check the current price for the monTEK heavy duty TV mount on Amazon when you are ready.
How We Test
I installed the monTEK mount under a 75 inch OLED panel weighing roughly 70 pounds, which is well under its rating but realistic for the size class it serves. I mounted it to 16 inch spaced studs, swiveled it through the full arc, extended and retracted the arms repeatedly over a month, and left the screen in tilted and pulled out positions overnight to check for drift. I also verified the tool-free tilt held its angle after each adjustment.
I did not test it with a 100 inch TV or the full 200 pound load, since that panel size was not available, and I did not test concrete mounting beyond confirming the anchors were provided. For independent guidance on choosing a mount for a large screen, Wirecutter's guide to TV wall mounts explains what to check before hanging your screen. The monTEK heavy duty mount listing on Amazon shows the current price and included hardware.
monTEK Heavy Duty Full Motion TV Mount: Questions People Ask
What is the maximum TV size and weight this mount supports?
The mount holds TVs from 50 to 100 inches weighing up to 200 pounds, and it accepts the largest common VESA patterns up to 900x600 mm. Anything in that range mounts safely with the included hardware.
Which wall studs will the mount fit?
The wall plate lines up with 12, 16, 18, and 24 inch stud spacing, so it works in most standard residential framing without extra adapters. You pick the horizontal slot row that matches your walls.
How far does the mount extend from the wall?
It extends up to 25.1 inches at full reach for corner and offset viewing, and it folds back close to the wall when you want a lower profile. The movement is smooth across the whole range.
What does the 4X load tested rating mean?
It means the mount was tested at four times its 200 pound rated capacity, so the margin built into the steel is well above the maximum TV weight it will carry. That margin is why a large panel stays stable and sag free.
