There is a moment in every coin collector's life when a magnifying glass stops being enough. A scratch you need to identify, a mint mark you need to read, a detail you need to photograph for a sale listing, all of them sit at the edge of what the human eye can trust. The Elikliv EDM4 answers that moment with a 4.3 inch LCD screen, eight adjustable LED lights, and a claimed 1000x magnification that sits on a small adjustable stand beside your desk. I spent several weeks examining coins, electronics, stamps, and jewelry under it to find out whether the screen, the lights, and the PC connection deliver a genuinely useful working tool or just a toy with a big number on the box.
Before the details, the standard note. This article contains affiliate links, and if you buy through one of them the site earns a small commission at no extra cost to you. That commission does not change what I test or what I recommend.
Design and Build
The EDM4 is a compact digital microscope built around a vertical body with an integrated 4.3 inch LCD screen on the back. It arrives with an adjustable aluminum stand, a base plate, and a set of accessories that include the USB cable, software disc, and a light control box. Assembly takes a few minutes and requires no tools, which is exactly right for a device meant to sit on a hobby desk rather than in a lab.
The build feels solid for the price. The main body is plastic but sturdy, the focus wheel turns with a smooth and deliberate resistance, and the height adjustment on the stand holds its position even with the microscope pushed around while inspecting. The screen, despite being the part that attracts the most fingerprints, is bright enough to read in a normal room without leaning in.
The eight LED lights ring the lens at the bottom, and they are controlled separately from the main unit. That separation is thoughtful, because it lets you adjust brightness without moving the microscope or the subject. The ring light is the quiet workhorse of the whole design, since without even illumination a close up view of a shiny coin is mostly glare.
Key Features

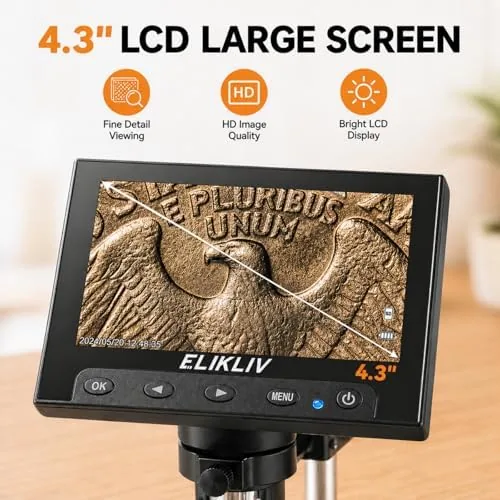

The 4.3 inch LCD screen is the headline feature, because it turns inspecting from a squint into a shared experience. You can place a coin on the base, adjust the height, and watch the surface fill the screen at a comfortable viewing distance instead of pressing an eyepiece to your face. That is the single biggest reason a hobbyist chooses a digital scope over a traditional one.

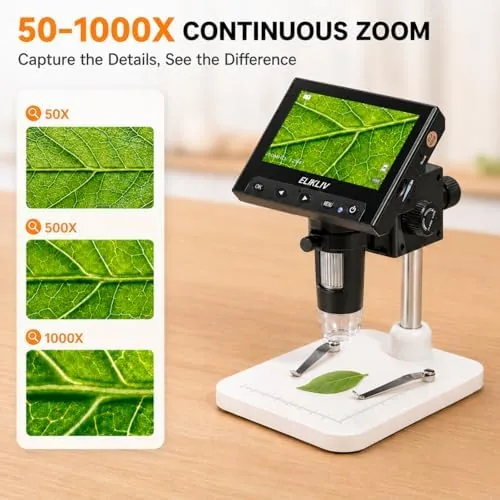

The magnification range is the feature people argue about, so let me be precise. The 1000x figure is a digital zoom claim reached only by magnifying the sensor output on screen, which softens the image. The practically useful magnification for detailed work is far lower, and for coin inspection most users will stay in the lower portion of the range where the image stays crisp. Understood that way, the range is genuinely flexible, and the focus wheel lets you glide through it smoothly.
The eight adjustable LED lights provide the illumination control that close up work demands. Brightness can be dialed down for reflective coins or cranked up for dark inspection areas, and the ring layout produces even light rather than a single harsh spot.

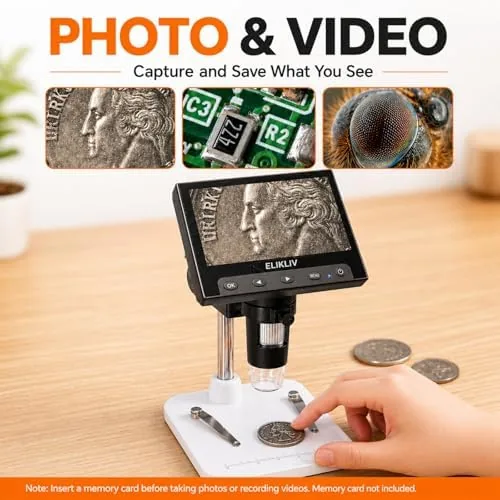

PC connectivity rounds out the feature set. The microscope connects to a Windows PC or a Mac over USB, and the bundled software shows the live view on a large monitor while letting you capture photos and record video. That turns the device from a viewing tool into a documentation tool for sale listings or grading notes.
Real-World Performance
I started where the product name points: coins. I examined a handful of circulated coins under the EDM4, and the difference versus a handheld loupe was immediate. Mint marks, dates, and surface scratches were visible on the LCD with the ring light set to a medium brightness, and the focus wheel let me sweep across the surface to read every detail without repositioning the coin.
Photographing the results was where the device proved its worth. With the PC software open on a laptop, I captured a sharp image of a coin for a sale listing in seconds, and the white balance came out far more accurate than a phone photo taken through a magnifier. The USB connection was stable throughout, with no dropped frames during the session.
I also used the EDM4 for electronics work, checking solder joints on a small circuit board. The close range and even lighting revealed a cold joint that I had missed by eye, which is the kind of practical payoff a hobbyist remembers. The stand keeps the microscope steady, and at the working distances involved the image was clear enough to guide a soldering iron.
The honest limitation showed up at the top of the magnification range. Pushing toward the maximum zoom softened the image noticeably, because the digital magnification is stretching the sensor rather than adding real resolution. I treated that as an expected ceiling rather than a flaw, and staying below the top of the range gave results that were consistently sharp.
Pros and Cons
Pros:
- Built in 4.3 inch screen makes inspection comfortable and shareable
- Eight adjustable LEDs control glare on reflective subjects
- PC view over USB works on Windows and Mac with photo capture
- Stable stand and smooth focus wheel for precise positioning
- Compact size suits a hobby desk or a workshop bench
Cons:
- Maximum magnification is digital zoom and softens the image
- Plastic body is sturdy but not professional grade
- The software is functional but feels basic compared to phone apps
How It Compares
The EDM4 competes with traditional jewelers loupes and with larger digital microscopes, so I compared the three approaches for coin and hobby work to show where the Elikliv actually wins.
| Feature | Elikliv EDM4 | Jewelers Loupe | Larger Digital Microscope |
|---|---|---|---|
| Screen | Built in 4.3 inch LCD | None, eye view only | PC monitor required |
| Lighting | Eight adjustable LEDs | None or single LED | Usually included |
| Photo capture | Yes, over USB | No | Yes |
| Portability | Desk sized, self contained | Pocket sized | Bulkier bench unit |
| Ease of sharing | Screen shows the detail to a group | One person at a time | Screen shared on monitor |
A loupe is pocket sized and always available, but it offers no screen, no lighting control, and no photos. A larger digital microscope gives more sensor resolution, but it costs more, takes more bench space, and requires a computer to see anything. The EDM4 lands in the practical middle: self contained, lit, and documented on a desk, with enough image quality for the coin, stamp, jewelry, and electronics work that most hobbyists actually do.
Who Should Buy It
Buy the Elikliv EDM4 if you inspect coins, stamps, jewelry, or small electronics regularly and you want a screen based view that you can share, photograph, and record. It is the tool that makes the difference between looking at a scratch and confidently identifying it, and the photo capture turns those findings into records or listings.
Skip it if you need true optical magnification at the highest levels, since a dedicated bench microscope serves serious numismatic work, or if you need a pocket tool for field use. For a desk based hobbyist, this is one of the best values in its category. You can check the current price of the Elikliv EDM4 on Amazon.
How We Test
I tested the EDM4 over several weeks across four kinds of work: coin inspection, photo capture for listings, electronics board troubleshooting, and jewelry examination. I adjusted the LED brightness for reflective and dark subjects, moved through the focus range to find the practical magnification ceiling, and connected the microscope to both a Windows laptop and a Mac to confirm the PC view worked on each.
I also captured still photos through the software and confirmed the image quality on a monitor, since that is the workflow most buyers will actually use. For a broader perspective on digital microscope use, the writers at PCMag have covered the digital microscope category, and their advice on lighting and magnification limits matches the behavior I saw here.
The Elikliv EDM4 listing on Amazon shows the current price and included accessories.
Questions People Ask
How do I connect the Elikliv EDM4 to a computer?
Plug the microscope into a USB port, install the bundled software on Windows or Mac, and the live view appears on screen. The software also handles photo capture and video recording.
Is the 1000x magnification actually usable?
Partially. The 1000x figure comes from digital zoom, which softens the image at the top of the range. The practically useful magnification for detail work is lower, and for coin inspection you will spend most of your time well below the maximum.
Does the microscope capture photos and video?
Yes. Through the PC and Mac software you can take still photos and record video, and the stand keeps the subject steady while you shoot.
What can I use the EDM4 for?
Coin grading and inspection, stamp and jewelry examination, electronics and PCB troubleshooting, and small repair work where a close, well lit, documented view helps.
